Serial Data Printers Connect to Atrax Digital Weight Indicators

Atrax Digital Weight Indicators (DWI) will connect with most modern printers that have a serial communication port. Data printed, depending on DWI and printer selected, can include scale weight, time and date, sequential number and fixed company name and/or logo.

If used with the CDI-1600 or 920i DWIs the printout can include other data captured at the scale location such as airway bill, flight or ULD number, barcodes and much more. The printout format can be customised to suit the end user requirements.

The choice of printing technology depends on the intended use of the printout. Atrax can supply direct thermal, thermal transfer and impact dot matrix. Three different types of printout are also available, including pre-printed individual dockets (may be carbonised for duplicates) strip/roll printouts and self-adhesive labels.

Slip Docket Printer

Model TM-U295

Printer method: 7pin, impact dot matrix
The Atrax model TM-U295 slip docket printer is an ultra-compact versatile printer that can accept a range of docket sizes and multiple copy carbonised stationery. Most suitable for container close-out slips or printing on any manual placed forms. Select from among four print sizes and four printing directions.

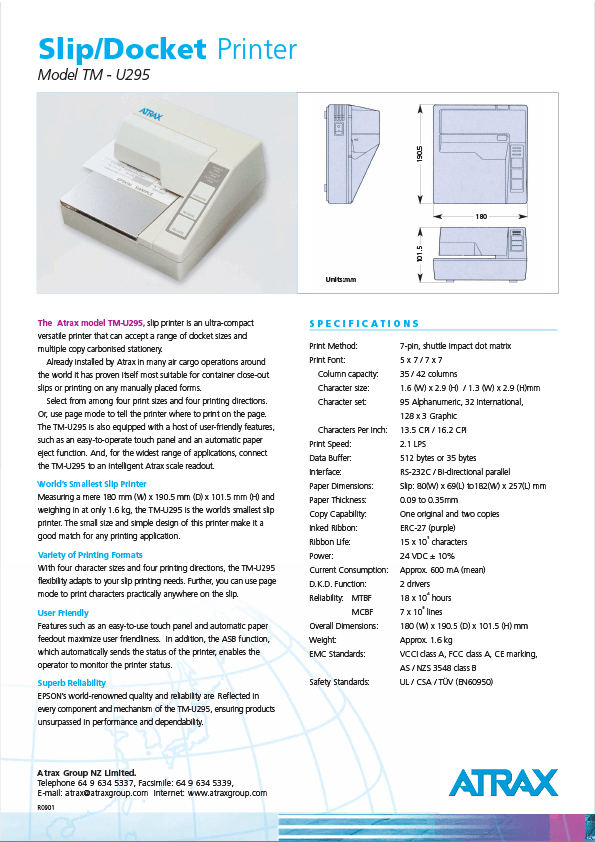

Atrax TM U295 Printer PDF | Thumbnail

For more information about the TM-295 Slip Docket Printer, download the data sheet below.

Label Printer

Model GK420

Print method: Direct thermal or thermal transfer
The Zebra GK420 is a fast printing ultra-compact high resolution label printer which can print text, graphic logos and barcodes onto a self-adhesive label. Available as a direct thermal print, using thermal sensitive label stock or as a thermal transfer print which uses a thermal ribbon and plain label stock.

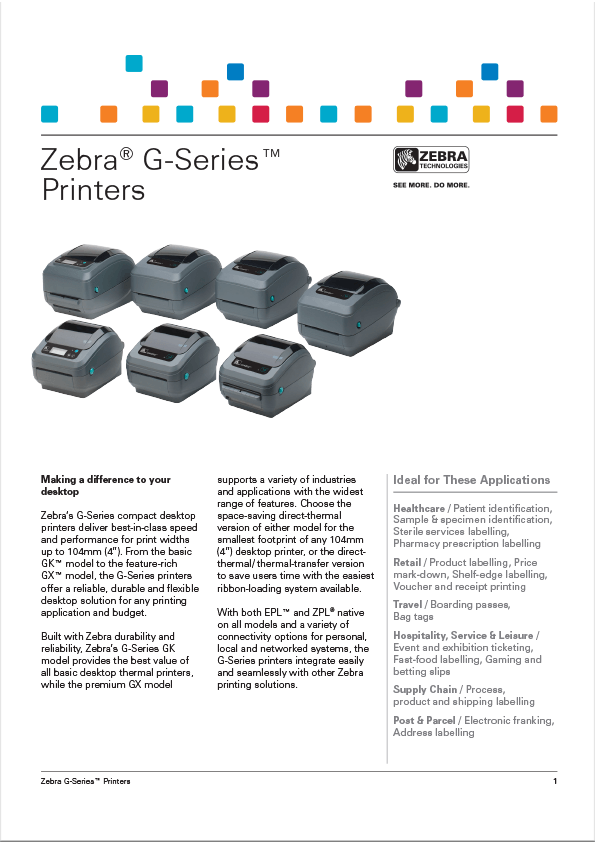

Zebra GK420 printer (G-Series) PDF | Thumbnail

For more information about the Zebra GK420 Label Printer, download the data sheet below.

Strip / Tally Roll Printer

Model TM-U220

Print method: 9pin, impact dot matrix
The TM-U220 series has been equipped with numerous features that maximise ease of use, including drop-in roll paper loading and auto paper cutter. Individual tickets are printed on plain roll paper which can be presented separately or left on a continuous roll.

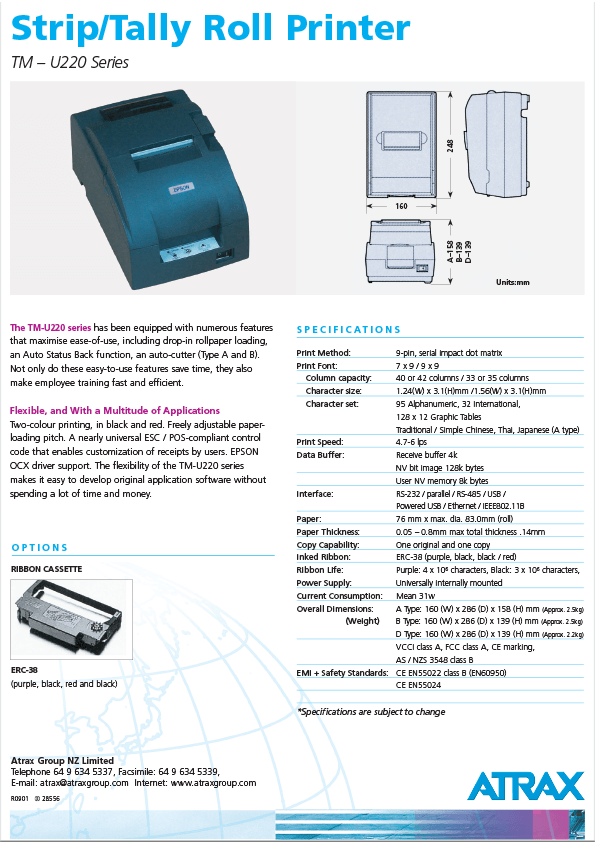

Atrax TM U220 Printer PDF | Thumbnail

For more information about the TM U220 Strip / Tally Roll Printer, download the data sheet below.

Tally Roll Printer

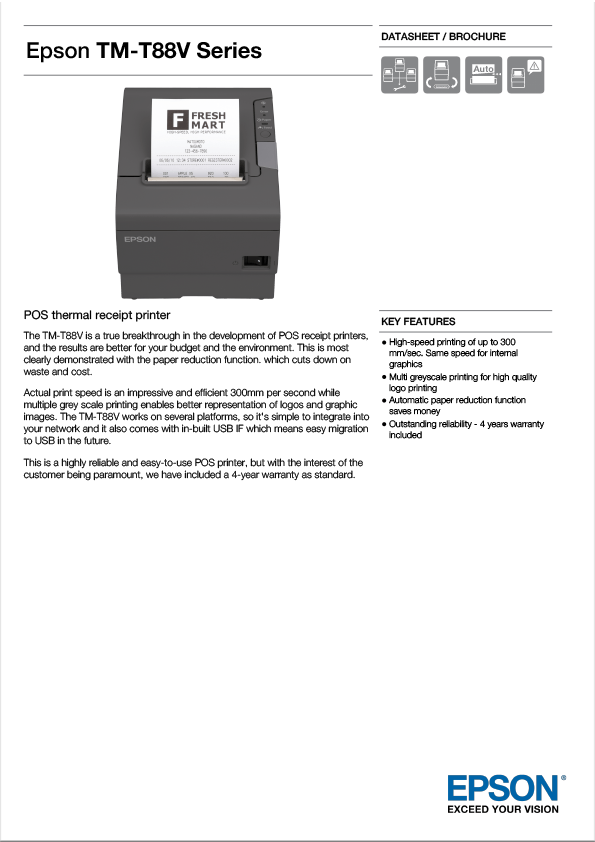

Model TM-T88V

Print method: 9pin, impact dot matrix
The TM-T88V series has been equipped with numerous features that maximise ease of use, including drop-in roll paper loading and auto paper cutter. Individual tickets are printed on plain roll paper which can be presented separately or left on a continuous roll.

More information

Want to know more about serial data printers for your organisation? Get in touch with us today.
