Model 480 Plus Digital Weight Indicator

Ideal for connecting to Atrax platform scales, the Atrax Model 480 Plus Digital Weight Indicator represents a great balance between performance and value.

The ultra-bright LED display, with digits over 20mm high and sharp contrast, makes for great readability. With advanced digital filtering, the unit promises top speed without sacrificing weight stability. A six-button tactile keyboard allows for quick navigation. The highly versatile and functional 480 Plus indicator has a CE mark and OIML plus NTEP Approvals.

Advanced circuitry withstands significant electrical noise, power disturbances and transient spikes.

With its stainless steel enclosure (sealed to IP66) and advanced gasket system, the industrial strength 480 Plus is built for demanding workplaces.

Features

  • Large 20.3mm LED display, 6 digit
  • Sealed to IP66
  • Menu keys for tare, unit ID, accumulator, time and date, setpoints, serial communications and print formats
  • Time and date
  • 8 setpoints
  • Password protection for configuration changes
  • RS-232 and 20mA ports
  • Size 241.3 x 152.4 x 69.9mm
  • Temperature range -10 to 40°C
  • Flat membrane panel keyboard with embossed keys

More information

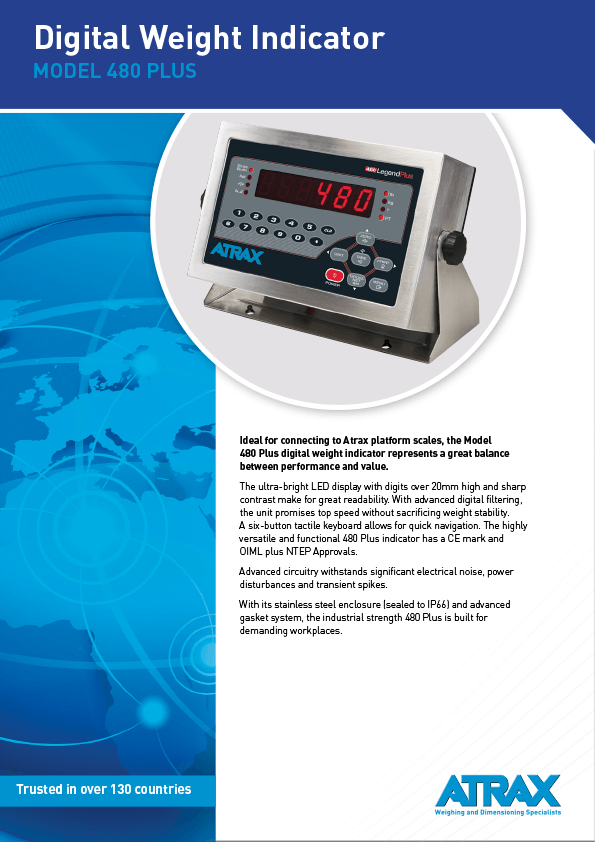

Atrax Model 480 Plus DWI (rev 0816) PDF | Thumbnail

For more information about the technical specifications of this unit, download the brochure below.
